الميزات الرئيسية
- Advanced electro-hydraulic control system delivering exceptionally smooth and precise adjustments for lifting, tilting, and comprehensive panel rotations.
- Flexible patient positioning capabilities seamlessly supporting a 110° V-shaped posture, a 250° reverse V-shaped posture, and a full 180° horizontal bed platform rotation.
- Versatile 350mm lifting stroke combined with a 245mm tabletop translation to provide generous space for full-body C-arm fluoroscopy and X-ray imaging.
- Comprehensive surgical design featuring specialized lumbar panel lifting and a reliable 135kg safe working load to meet diverse clinical requirements.
وصف المنتج

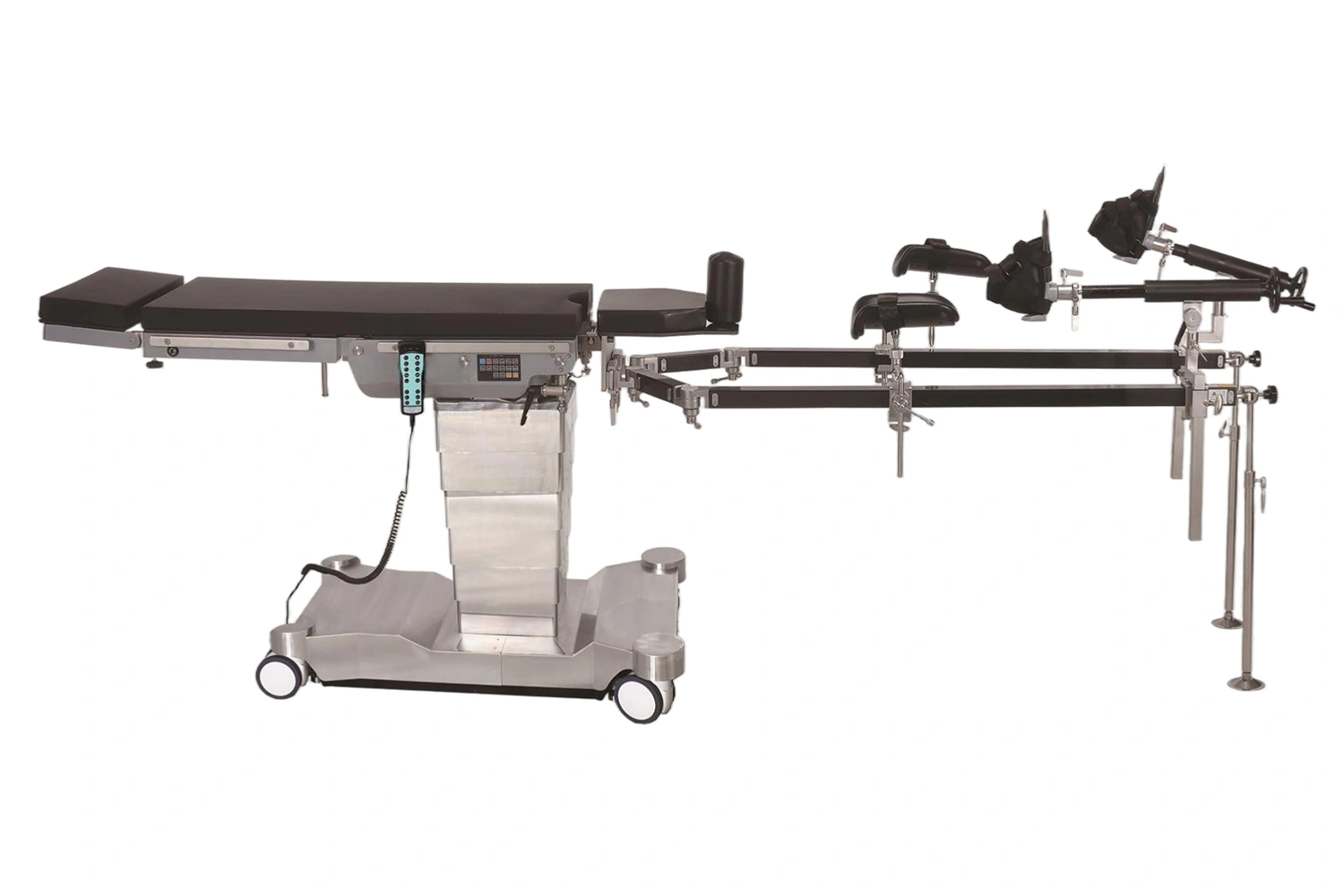

The ECOH003C-3 Electro-Hydraulic Operating Table is a highly versatile and meticulously engineered surgical platform designed to accommodate the complex positioning requirements of modern clinical institutions. Integrating a robust mechanical framework with an advanced electro-hydraulic control system, this operating table provides surgical teams with smooth and precise control over tabletop lifting, multi-directional tilting, and individual panel adjustments. Engineered for maximum clinical adaptability, it reliably supports a 135kg safe working load, making it an excellent choice for general, orthopedic, and specialized surgical procedures.
To maximize operating room efficiency and surgical access, the ECOH003C-3 is equipped with advanced positioning features, including a 180° horizontal bed platform rotation and dedicated V-position adjustments. The surgical bed also features a 245mm longitudinal translation and a generous 350mm lifting stroke, ensuring unrestricted access for C-arm fluoroscopy and optimal ergonomic comfort for the surgical team. With specialized functions like built-in lumbar panel lifting and a precise horizontal zero reset, this operating table stands as an indispensable asset for improving procedural precision and patient safety.
تفاصيل المنتج
المواصفات الفنية
| المعلمة | المواصفات |
|---|---|
| Total length | 2100 ± 150 ملم |
| Width (excluding track) | 500 ± 100 ملم |
| Width (including track) | 550 ± 100 ملم |
| Head panel | 250 × 500 ± 100 مم |
| Back panel | 465 × 500 ± 100 ملم |
| Lumbar panel | 75 × 500 ± 100 ملم |
| Seat panel | 630 × 500 ± 100 ملم |
| Leg panel | 600 × 240 ± 100 ملم |
| Minimum height from floor (excluding mattress) | 600 ± 150mm |
| Minimum height from floor (including mattress) | 650 ± 150 ملم |
| Maximum height from floor (excluding mattress) | ≥950 ± 150mm |
| Maximum height from floor (including mattress) | ≥1000 ± 150mm |
| Stroke | ≥350 مم |
| Forward tilt | ≥20° |
| Backward tilt | ≥15° |
| Left/right tilt | ≥15° |
| Forward/backward movement | ≥245mm |
| V-position (optional) | ≤110° |
| Reverse V-position (optional) | ≤250° |
| Head panel upward tilt | 45 درجة أو أكثر |
| Head panel downward tilt | ≥90° |
| Back panel upward tilt | ≥75 درجة |
| Back panel downward tilt | ≥10° |
| Leg panel downward tilt | ≥90° |
| Leg panel abduction | ≥90° |
| Lumbar panel raising (optional) | 80 ملم أو أكثر |
| Bed platform horizontal rotation (optional) | ≥180 درجة |
| Horizontal zero reset (optional) | ±2 درجة |
| Lifting speed | 3~16mm/s |
| حمولة العمل الآمنة | 135 كيلوغرامًا |
الإكسسوارات
| Accessory Name | الكمية |
|---|---|
| اللوحة الرئيسية | 1 |
| حامل شاشة التخدير | 1 |
| دعم الجسم | 2 |
| دعامة الكتف | 2 |
| مسند الذراع | 2 |
| دعامة الساق | 2 |
| المراتب | 1 |
| Body Restraint Strap(Option) | 1 |
