Main Features
- Utilizing a premium German LED light source integrated with high-performance OSRAM lenses, it ensures exceptionally clear, deep, and stable illumination for precise surgical procedures.
- It features a highly adjustable color temperature system (3500K to 5500K) with four specific levels, maintaining a superior Color Rendering Index (Ra ≥95) for the exact differentiation of tissue structures.

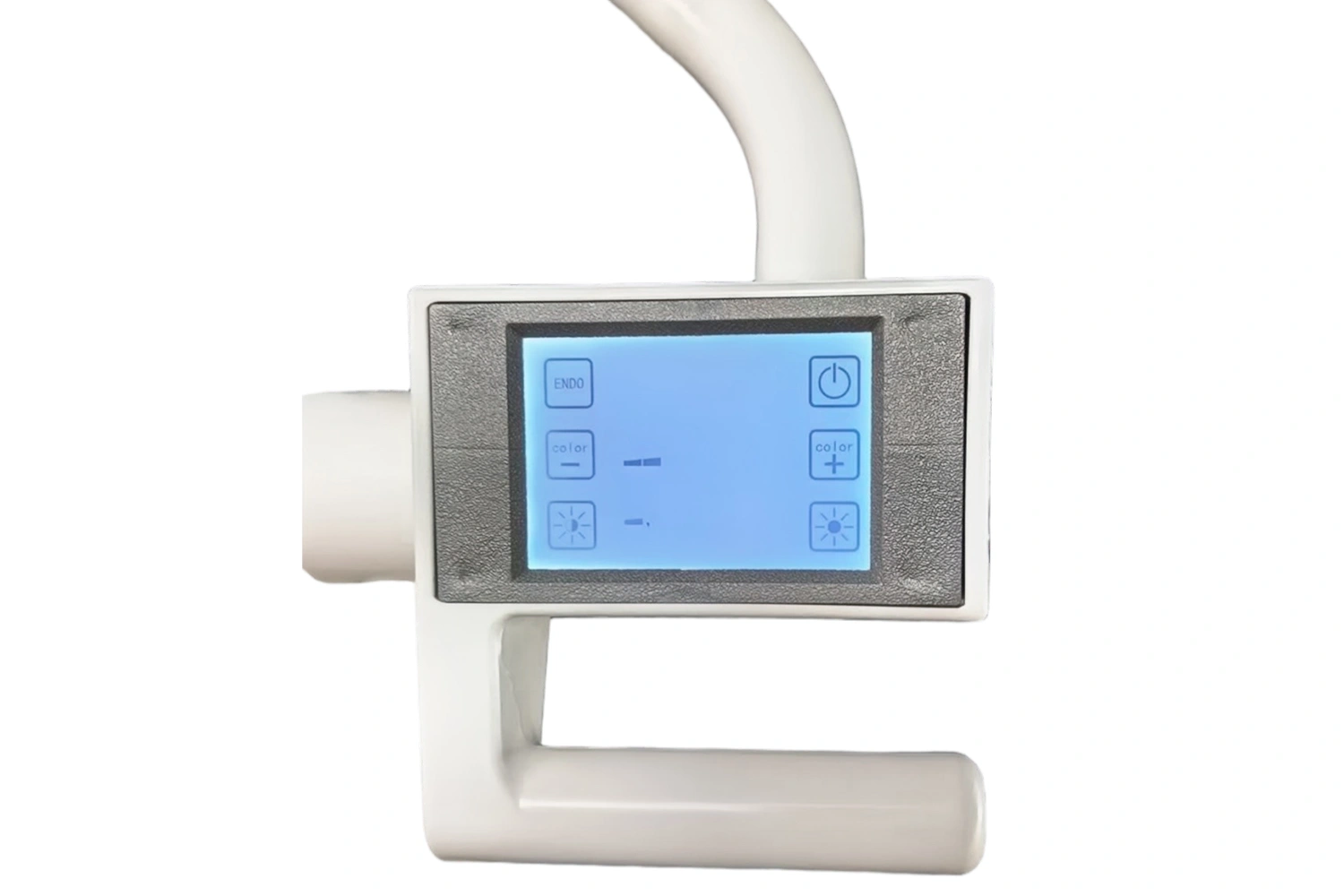

- Medical teams can effortlessly adjust both the intense illuminance—up to 160,000 lux for the 700mm dome and 140,000 lux for the 500mm dome—and the focusable light-field size via an intuitive control panel.
- The sleek, streamlined aerodynamic design flawlessly meets the strict modernization and hygiene requirements of laminar flow operating rooms by minimizing air turbulence.
- Delivering ultimate long-term value, the individual LED bulbs boast an effective service life of over 50,000 hours and can be replaced individually to minimize ongoing maintenance costs.
Product Description

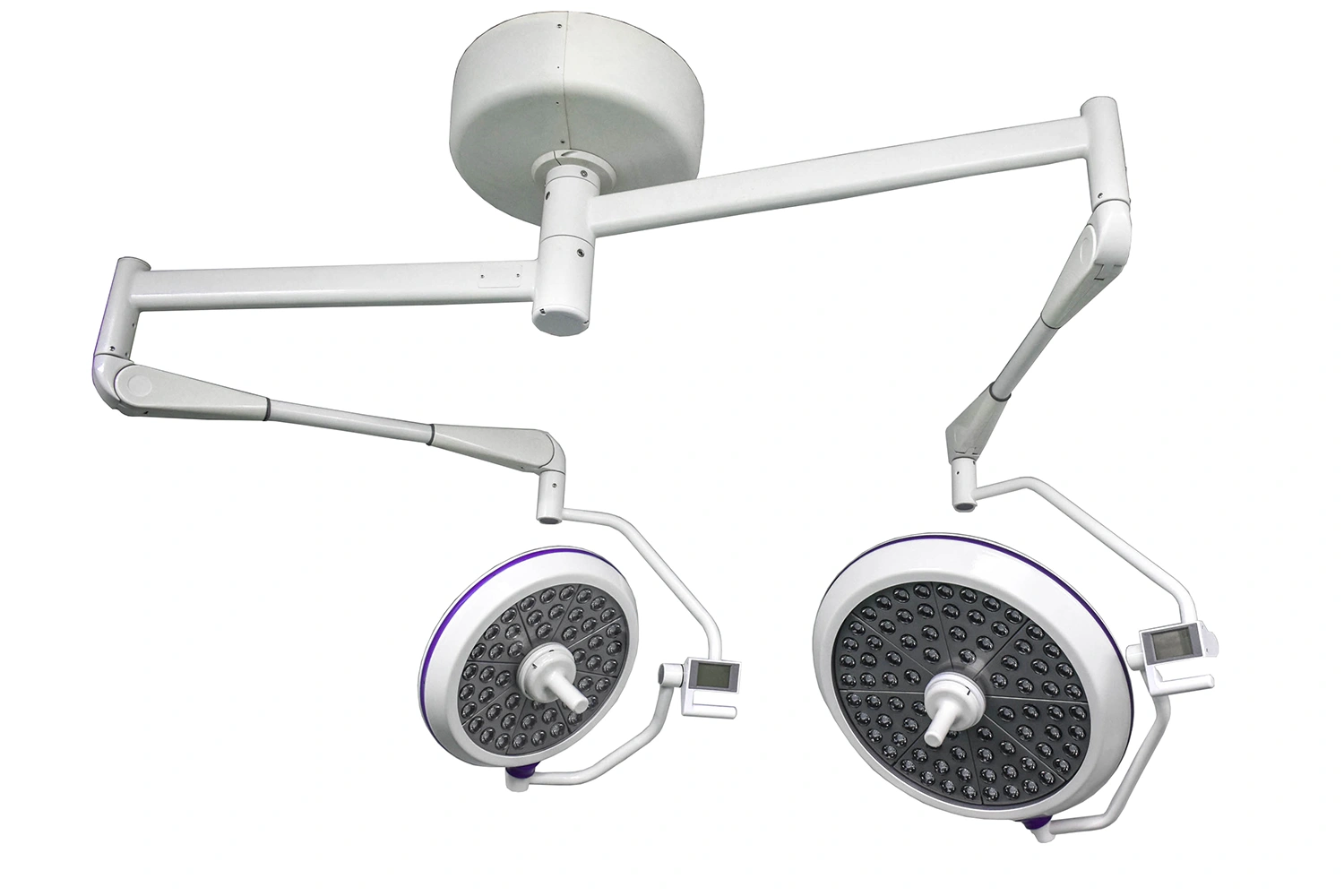

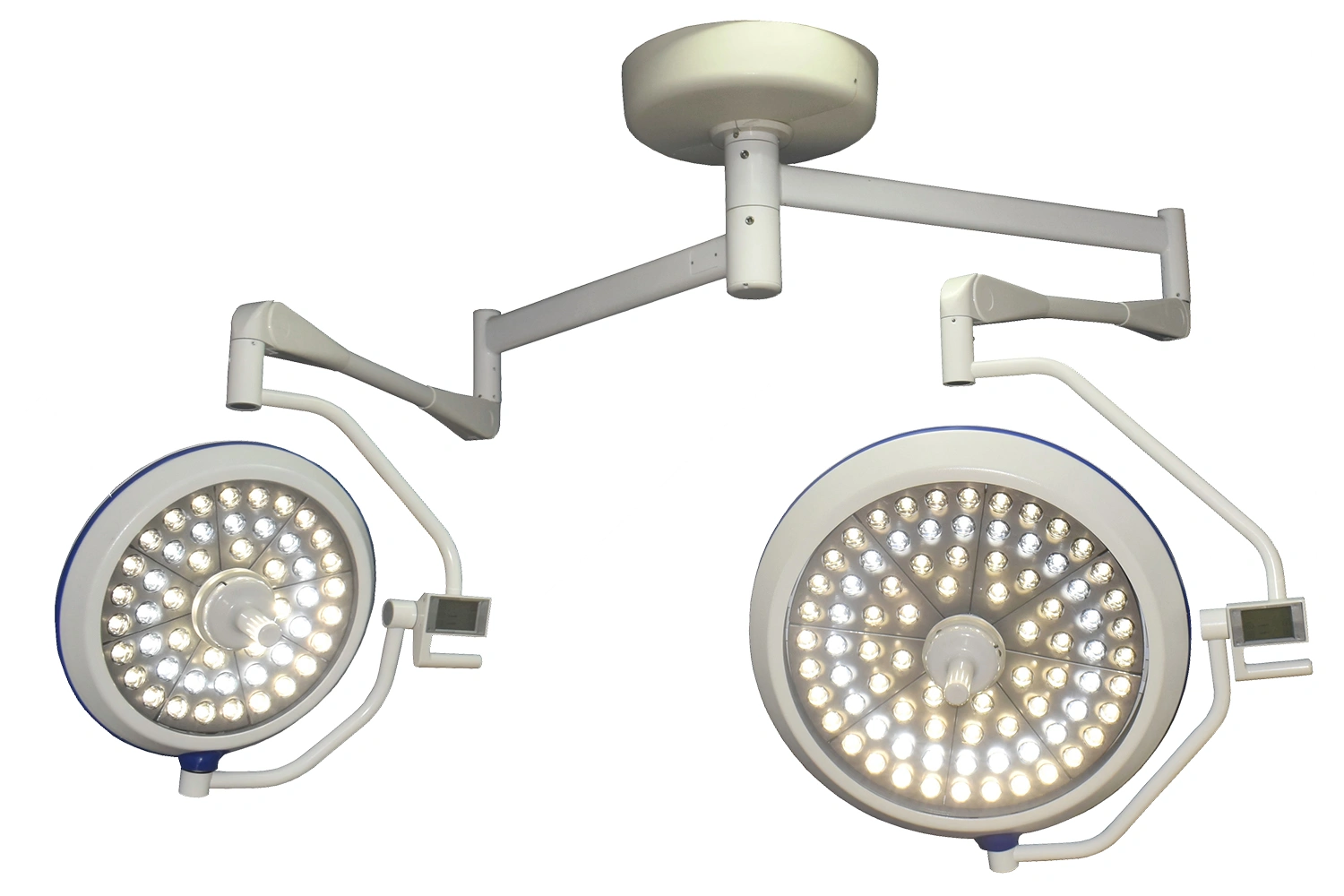

The II LED 700/500 Dual-Head Surgical Light is a state-of-the-art ceiling-mounted illumination solution engineered for advanced operating theaters. This high-performance dual-dome system integrates a 700mm main light head equipped with 80 LEDs and a 500mm auxiliary head with 48 LEDs, utilizing premium German LED light sources with OSRAM lenses to deliver shadowless lighting with a deep focus exceeding 700mm. Surgeons benefit from superior optical clarity with an adjustable color temperature range (3500K–5500K) and a Color Rendering Index of Ra ≥95, ensuring highly accurate tissue assessment. The sleek, streamlined housing is specifically designed to meet the rigorous modernization requirements of laminar flow operating rooms by reducing airflow disturbance. Featuring a user-friendly control panel for spot size (120mm to 300mm) and intensity adjustments, individual LED bulb replacement capabilities, and seamless integration with optional HD/1080P/4K camera systems and emergency battery backups, the II LED 700/500 operating light provides unparalleled clinical performance and long-lasting reliability.
Product Details
Technical Specifications
| Model | II LED700 | II LED500 |
|---|---|---|
| Diameter of light dome | 700mm | 500mm |
| LED Bulbs (pcs) | 80pcs | 48pcs |
| Illuminance (Lux) | 40,000~160,000 lux | 40,000~140,000 lux |
| Focusable light-field size | 120~300mm | 120~300mm |
| Colour temperature | 3500~5500K | 3500~5000K |
| Depth of Focus | ≥700mm | ≥700mm |
| Colour Rendering Index （Ra） | ≥95 | ≥95 |
| Power Supply | AC 110V~240V 50/60Hz | AC 110V~240V 50/60Hz |
| Effective bulb service life | ≥50,000h | ≥50,000h |
| Power | 60 | 48 |
| Installation height (Ceiling type) | 2800-3200 mm | 2800-3200 mm |
| Optional | Emergency Battery（support 3-4hours) HD Camera system(Option HD,1080P,4K Camera Solution) | Emergency Battery（support 3-4hours) HD Camera system(Option HD,1080P,4K Camera Solution) |
